DiskCache Benchmarks¶
Reads: 2.6 µs median in the classic mix, the fastest store there, 6 times faster than memcached and 16 times faster than Redis on the same machine.
Large working sets: lmdb reads faster over 100,000 keys (0.9 µs against 3.2 µs at 95 % hits).
Writes: 19.2 µs median, on par with memcached (16.0 µs to 18.5 µs) and 2 times faster than Redis.
Against diskcache 5.6.3: reads within 0.6 µs, writes 9 to 14 % faster, 48 % faster for 1 MB values.
Concurrency: FanoutCache(8) is the fastest setup across processes, 291,478 operations per second from 8 processes; for 8 threads in one process use a single Cache (188,028 against 19,715).
lmdb writes take 5.98 ms because its defaults flush to disk on every write.
Environment¶
memcached: memcached 1.6.45
Redis: 8.10.2
diskcache-community Cache: diskcache-community 5.7.0
diskcache-community FanoutCache(8): diskcache-community 5.7.0
diskcache 5.6.3 Cache: diskcache 5.6.3
memcached, pymemcache: pymemcache 4.0.0
memcached, pylibmc: pylibmc 1.6.3, libmemcached 1.0.18
Redis, redis-py: redis-py 8.1.0 with hiredis
lmdb: py-lmdb 3.0.0, liblmdb 0.9.36
sqlitedict: sqlitedict 2.1.0
shelve (dbm): shelve over dbm.sqlite3, Python 3.14.8
Django 6.0.9
diskcache-community and diskcache 5.6.3¶
The same workloads, run against the fork and against the last upstream release in separate environments on the same machine. For latencies a negative change favours the fork; for operations per second a positive one does.
Measure |
diskcache 5.6.3 |
diskcache-community |
change |
|---|---|---|---|
Classic mix, get p50 |
2.6 µs |
2.6 µs |
+0 % |
Classic mix, set p50 |
22.3 µs |
19.2 µs |
-14 % |
Classic mix, delete p50 |
20.5 µs |
18.4 µs |
-11 % |
Classic mix, ops per second |
185562 |
197044 |
+6 % |
100-byte values, set p50 |
24.0 µs |
21.7 µs |
-10 % |
64 KB values, set p50 |
250.9 µs |
229.5 µs |
-9 % |
1 MB values, set p50 |
676.4 µs |
351.3 µs |
-48 % |
1 MB values, get p50 |
55.0 µs |
54.4 µs |
-1 % |
95 % hits, get p50 |
2.8 µs |
3.2 µs |
+12 % |
8 processes, set p50 |
22.8 µs |
20.3 µs |
-11 % |
8 threads, ops per second |
174210 |
188028 |
+8 % |
Django, get p50 |
3.6 µs |
3.7 µs |
+2 % |
Django, set p50 |
24.1 µs |
24.8 µs |
+3 % |

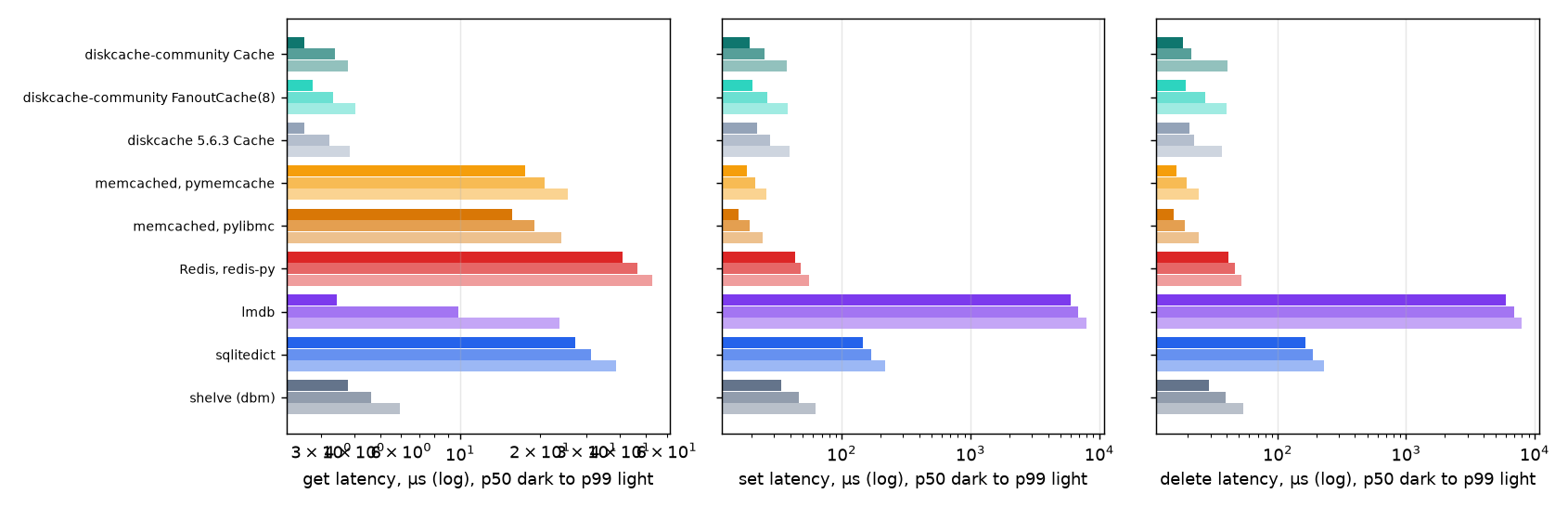

The classic mix¶
The workload of the original 2016 page, kept so the two can be compared: keys drawn from a space of 100, values of up to about 600 bytes, 90 % gets, 9 % sets and 1 % deletes, 100,000 operations after a 1,000-operation warm-up, in one process. The ~1 % miss rate comes from gets after deletes.
Store |
p50 |
p50 across runs |
p90 |
p99 |
max |
misses |
|---|---|---|---|---|---|---|
diskcache-community Cache |
2.6 µs |
2.6 µs to 2.6 µs |
3.4 µs |
3.8 µs |
36.6 µs |
8714 |
diskcache-community FanoutCache(8) |
2.8 µs |
2.8 µs to 2.8 µs |
3.3 µs |
4.0 µs |
26.8 µs |
8714 |
diskcache 5.6.3 Cache |
2.6 µs |
2.5 µs to 2.6 µs |
3.2 µs |
3.8 µs |
27.1 µs |
8714 |
memcached, pymemcache |
17.6 µs |
17.5 µs to 17.7 µs |
20.8 µs |
25.4 µs |
130.4 µs |
8714 |
memcached, pylibmc |
15.7 µs |
15.6 µs to 15.7 µs |
19.0 µs |
24.0 µs |
72.6 µs |
8714 |
Redis, redis-py |
40.9 µs |
40.8 µs to 41.3 µs |
46.6 µs |
52.8 µs |
274.2 µs |
8714 |
lmdb |
3.4 µs |
3.4 µs to 3.5 µs |
9.8 µs |
23.6 µs |
185.4 µs |
8714 |
sqlitedict |
27.2 µs |
27.1 µs to 27.3 µs |
31.0 µs |
38.7 µs |
109.8 µs |
8714 |
shelve (dbm) |
3.8 µs |
3.8 µs to 3.8 µs |
4.6 µs |
5.9 µs |
17.8 µs |
8714 |
Store |
p50 |
p50 across runs |
p90 |
p99 |
max |
misses |
|---|---|---|---|---|---|---|
diskcache-community Cache |
19.2 µs |
19.2 µs to 19.9 µs |
25.4 µs |
37.3 µs |
623.2 µs |
0 |
diskcache-community FanoutCache(8) |
20.5 µs |
20.3 µs to 20.9 µs |
26.5 µs |
38.1 µs |
1.02 ms |
0 |
diskcache 5.6.3 Cache |
22.3 µs |
22.1 µs to 22.4 µs |
28.0 µs |
39.4 µs |
789.1 µs |
0 |
memcached, pymemcache |
18.5 µs |
18.3 µs to 18.6 µs |
21.3 µs |
25.9 µs |
60.1 µs |
0 |
memcached, pylibmc |
16.0 µs |
16.0 µs to 16.1 µs |
19.4 µs |
24.3 µs |
37.2 µs |
0 |
Redis, redis-py |
43.6 µs |
43.4 µs to 43.7 µs |
48.5 µs |
55.7 µs |
133.5 µs |
0 |
lmdb |
5.98 ms |
5.97 ms to 5.99 ms |
6.90 ms |
8.02 ms |
14.69 ms |
0 |
sqlitedict |
147.0 µs |
146.5 µs to 148.6 µs |
170.5 µs |
217.3 µs |
1.22 ms |
0 |
shelve (dbm) |
34.3 µs |
33.8 µs to 35.0 µs |
46.7 µs |
62.5 µs |
2.29 ms |
0 |
Store |
p50 |
p50 across runs |
p90 |
p99 |
max |
misses |
|---|---|---|---|---|---|---|
diskcache-community Cache |
18.4 µs |
18.2 µs to 18.6 µs |
21.4 µs |
40.8 µs |
569.9 µs |
111 |
diskcache-community FanoutCache(8) |
19.3 µs |
19.1 µs to 19.4 µs |
27.2 µs |
40.2 µs |
897.4 µs |
111 |
diskcache 5.6.3 Cache |
20.5 µs |
20.5 µs to 20.6 µs |
22.5 µs |
37.1 µs |
518.0 µs |
111 |
memcached, pymemcache |
16.4 µs |
16.4 µs to 16.7 µs |
19.8 µs |
24.5 µs |
30.5 µs |
111 |
memcached, pylibmc |
15.6 µs |
15.5 µs to 15.8 µs |
19.0 µs |
24.2 µs |
29.3 µs |
111 |
Redis, redis-py |
41.4 µs |
41.0 µs to 41.5 µs |
46.6 µs |
52.4 µs |
74.3 µs |
111 |
lmdb |
5.96 ms |
5.95 ms to 5.97 ms |
6.90 ms |
7.96 ms |
10.96 ms |
111 |
sqlitedict |
164.3 µs |
163.5 µs to 164.8 µs |
188.2 µs |
230.1 µs |
466.0 µs |
111 |
shelve (dbm) |
29.0 µs |
28.8 µs to 29.5 µs |
39.1 µs |
54.4 µs |
118.9 µs |
111 |
Store |
ops per second |
wall time |
on disk after the run |
|---|---|---|---|
diskcache-community Cache |
197044 |
0.50 s |
4 MB |
diskcache-community FanoutCache(8) |
182771 |
0.54 s |
32 MB |
diskcache 5.6.3 Cache |
185562 |
0.53 s |
4 MB |
memcached, pymemcache |
53497 |
1.85 s |
server |
memcached, pylibmc |
58268 |
1.70 s |
server |
Redis, redis-py |
23519 |
4.21 s |
server |
lmdb |
1592 |
62.17 s |
192 KB |
sqlitedict |
24246 |
4.08 s |
64 KB |
shelve (dbm) |
131608 |
0.75 s |
4 MB |

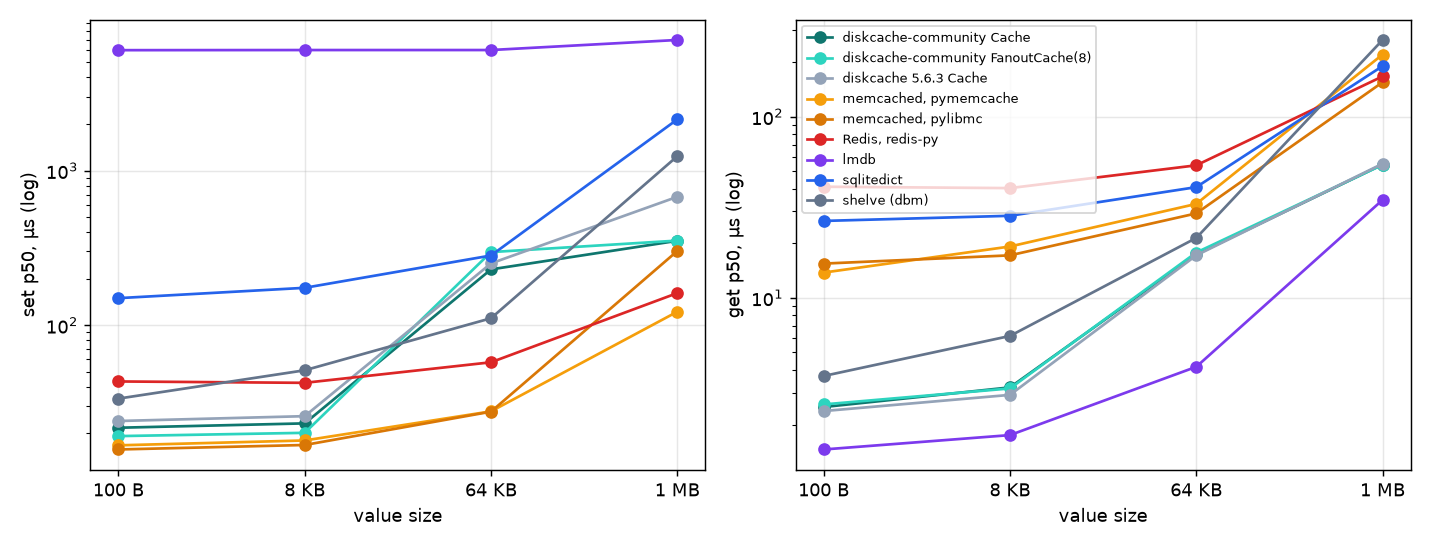

Value sizes¶
Sets followed by gets at four value sizes. The 64 KB and 1 MB tiers cross DiskCache’s default 32 KB threshold above which values live in files next to the database; memcached was started with its item size limit raised to 4 MB for the 1 MB tier.
Store |
set p50 |
set p99 |
get p50 |
get p99 |
|---|---|---|---|---|
diskcache-community Cache |
21.7 µs |
37.0 µs |
2.5 µs |
3.3 µs |
diskcache-community FanoutCache(8) |
19.2 µs |
36.4 µs |
2.6 µs |
3.4 µs |
diskcache 5.6.3 Cache |
24.0 µs |
40.9 µs |
2.4 µs |
3.0 µs |
memcached, pymemcache |
16.7 µs |
24.0 µs |
13.8 µs |
23.3 µs |
memcached, pylibmc |
15.7 µs |
22.0 µs |
15.5 µs |
21.8 µs |
Redis, redis-py |
43.2 µs |
52.7 µs |
41.0 µs |
50.5 µs |
lmdb |
6.01 ms |
8.04 ms |
1.5 µs |
3.2 µs |
sqlitedict |
149.5 µs |
232.5 µs |
26.6 µs |
36.6 µs |
shelve (dbm) |
33.5 µs |
56.4 µs |
3.7 µs |
5.1 µs |
Store |
set p50 |
set p99 |
get p50 |
get p99 |
|---|---|---|---|---|
diskcache-community Cache |
23.2 µs |
44.0 µs |
3.2 µs |
4.5 µs |
diskcache-community FanoutCache(8) |
20.1 µs |
41.2 µs |
3.2 µs |
4.7 µs |
diskcache 5.6.3 Cache |
25.8 µs |
48.0 µs |
2.9 µs |
4.2 µs |
memcached, pymemcache |
18.0 µs |
25.7 µs |
19.2 µs |
25.7 µs |
memcached, pylibmc |
16.8 µs |
23.4 µs |
17.2 µs |
23.5 µs |
Redis, redis-py |
42.4 µs |
54.0 µs |
40.3 µs |
51.7 µs |
lmdb |
6.02 ms |
7.99 ms |
1.8 µs |
6.7 µs |
sqlitedict |
174.4 µs |
292.0 µs |
28.4 µs |
39.2 µs |
shelve (dbm) |
51.1 µs |
82.2 µs |
6.2 µs |
7.8 µs |
Store |
set p50 |
set p99 |
get p50 |
get p99 |
|---|---|---|---|---|
diskcache-community Cache |
229.5 µs |
399.1 µs |
17.4 µs |
31.6 µs |
diskcache-community FanoutCache(8) |
296.9 µs |
429.2 µs |
17.8 µs |
31.1 µs |
diskcache 5.6.3 Cache |
250.9 µs |
419.8 µs |
17.2 µs |
30.8 µs |
memcached, pymemcache |
27.7 µs |
36.2 µs |
33.0 µs |
44.3 µs |
memcached, pylibmc |
27.6 µs |
37.8 µs |
29.2 µs |
37.5 µs |
Redis, redis-py |
57.5 µs |
67.6 µs |
53.9 µs |
65.5 µs |
lmdb |
6.02 ms |
8.05 ms |
4.2 µs |
21.1 µs |
sqlitedict |
282.2 µs |
449.3 µs |
40.8 µs |
51.9 µs |
shelve (dbm) |
110.9 µs |
1.90 ms |
21.4 µs |
27.6 µs |
Store |
set p50 |
set p99 |
get p50 |
get p99 |
|---|---|---|---|---|
diskcache-community Cache |
351.3 µs |
483.9 µs |
54.4 µs |
79.7 µs |
diskcache-community FanoutCache(8) |
352.3 µs |
484.6 µs |
54.2 µs |
81.3 µs |
diskcache 5.6.3 Cache |
676.4 µs |
834.5 µs |
55.0 µs |
81.7 µs |
memcached, pymemcache |
122.2 µs |
135.9 µs |
220.2 µs |
238.4 µs |
memcached, pylibmc |
301.8 µs |
319.7 µs |
154.8 µs |
168.2 µs |
Redis, redis-py |
161.2 µs |
180.4 µs |
166.8 µs |
192.1 µs |
lmdb |
6.99 ms |
9.04 ms |
34.7 µs |
211.6 µs |
sqlitedict |
2.14 ms |
2.99 ms |
190.1 µs |
221.6 µs |
shelve (dbm) |
1.24 ms |
4.35 ms |
264.8 µs |
307.8 µs |
Hit ratio¶
Gets over a working set of 100,000 keys with 256-byte values, 100,000 operations, at a 95 % and a 50 % hit ratio. Misses are requests for keys that were never stored.
Store |
95 % hits p50 |
95 % hits p99 |
50 % hits p50 |
50 % hits p99 |
on disk |
|---|---|---|---|---|---|
diskcache-community Cache |
3.2 µs |
4.3 µs |
2.6 µs |
4.0 µs |
68 MB |
diskcache-community FanoutCache(8) |
3.1 µs |
4.4 µs |
2.8 µs |
4.3 µs |
68 MB |
diskcache 5.6.3 Cache |
2.8 µs |
4.0 µs |
2.5 µs |
4.0 µs |
69 MB |
memcached, pymemcache |
17.5 µs |
24.5 µs |
16.8 µs |
24.1 µs |
server |
memcached, pylibmc |
15.8 µs |
22.6 µs |
15.6 µs |
22.4 µs |
server |
Redis, redis-py |
40.0 µs |
50.6 µs |
40.7 µs |
50.8 µs |
server |
lmdb |
0.9 µs |
1.8 µs |
0.7 µs |
1.9 µs |
49 MB |
sqlitedict |
27.9 µs |
42.7 µs |
27.4 µs |
41.3 µs |
30 MB |
shelve (dbm) |
5.0 µs |
6.7 µs |
3.5 µs |
6.3 µs |
33 MB |

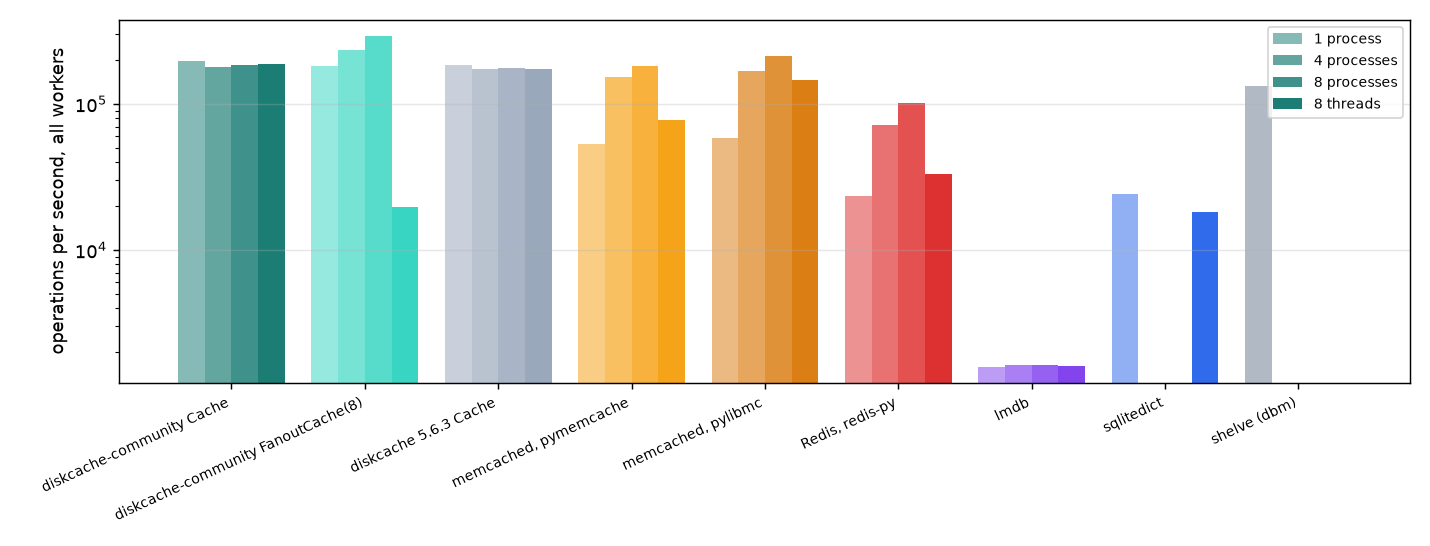

Concurrency¶
The classic mix from 4 and 8 processes sharing one store, and from 8 threads in one process, each worker running the full 100,000 operations. sqlitedict and shelve are single-process stores by design and are left out of the process workloads; shelve’s dbm objects are bound to the thread that opened them, so it is left out of the thread workload too. The memcached clients are not thread-safe, so each thread gets its own connection, as pymemcache’s PooledClient and pylibmc’s ThreadMappedPool hand out. Cells show get p50 / set p50.
Store |
1 process |
4 processes |
8 processes |
8 threads |
|---|---|---|---|---|
diskcache-community Cache |
2.6 µs / 19.2 µs |
2.6 µs / 20.3 µs |
2.6 µs / 20.3 µs |
2.5 µs / 20.1 µs |
diskcache-community FanoutCache(8) |
2.8 µs / 20.5 µs |
3.3 µs / 28.8 µs |
3.5 µs / 32.9 µs |
216.6 µs / 1.26 ms |
diskcache 5.6.3 Cache |
2.6 µs / 22.3 µs |
2.5 µs / 23.0 µs |
2.5 µs / 22.8 µs |
2.6 µs / 23.8 µs |
memcached, pymemcache |
17.6 µs / 18.5 µs |
23.3 µs / 23.8 µs |
38.3 µs / 38.6 µs |
88.8 µs / 87.8 µs |
memcached, pylibmc |
15.7 µs / 16.0 µs |
20.6 µs / 20.8 µs |
33.3 µs / 33.6 µs |
45.9 µs / 46.3 µs |
Redis, redis-py |
40.9 µs / 43.6 µs |
51.8 µs / 55.9 µs |
70.8 µs / 75.1 µs |
223.1 µs / 224.3 µs |
lmdb |
3.4 µs / 5.98 ms |
3.2 µs / 23.96 ms |
3.3 µs / 48.03 ms |
4.9 µs / 49.00 ms |
sqlitedict |
27.2 µs / 147.0 µs |
not run |
not run |
404.8 µs / 525.9 µs |
shelve (dbm) |
3.8 µs / 34.3 µs |
not run |
not run |
not run |
Store |
1 process |
4 processes |
8 processes |
8 threads |
|---|---|---|---|---|
diskcache-community Cache |
197044 |
179441 |
184652 |
188028 |
diskcache-community FanoutCache(8) |
182771 |
233447 |
291478 |
19715 |
diskcache 5.6.3 Cache |
185562 |
173486 |
176978 |
174210 |
memcached, pymemcache |
53497 |
152049 |
181101 |
77380 |
memcached, pylibmc |
58268 |
169042 |
211748 |
146576 |
Redis, redis-py |
23519 |
71765 |
101483 |
32954 |
lmdb |
1592 |
1636 |
1625 |
1600 |
sqlitedict |
24246 |
not run |
not run |
18344 |
shelve (dbm) |
131608 |
not run |
not run |
not run |

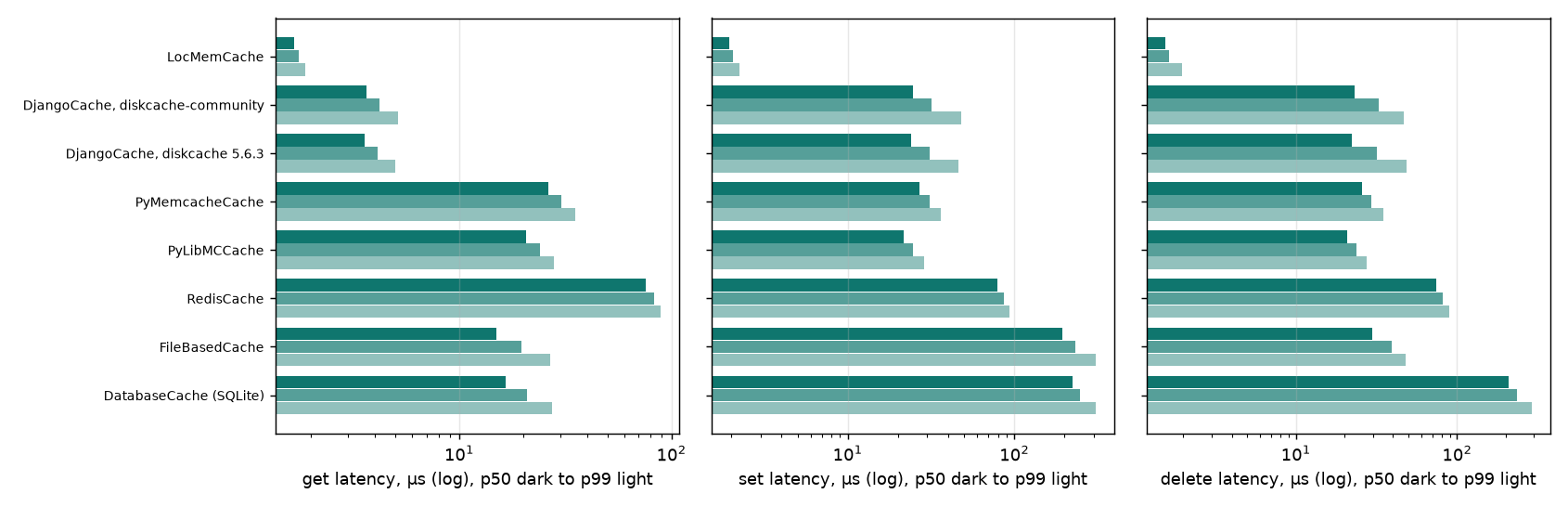

Django backends¶
The classic mix through Django’s cache API with each backend in turn, which
adds Django’s key building and versioning on top of every operation.
DatabaseCache uses SQLite; RedisCache is Django’s own backend.
Store |
p50 |
p50 across runs |
p90 |
p99 |
max |
misses |
|---|---|---|---|---|---|---|
LocMemCache |
1.7 µs |
1.7 µs to 1.7 µs |
1.8 µs |
1.9 µs |
27.1 µs |
8714 |
DjangoCache, diskcache-community |
3.7 µs |
3.7 µs to 3.7 µs |
4.2 µs |
5.1 µs |
30.5 µs |
8714 |
DjangoCache, diskcache 5.6.3 |
3.6 µs |
3.5 µs to 3.6 µs |
4.1 µs |
5.0 µs |
36.9 µs |
8714 |
PyMemcacheCache |
26.3 µs |
26.2 µs to 26.5 µs |
30.2 µs |
35.4 µs |
97.2 µs |
8714 |
PyLibMCCache |
20.7 µs |
20.7 µs to 20.8 µs |
23.9 µs |
28.0 µs |
70.9 µs |
8714 |
RedisCache |
75.5 µs |
75.1 µs to 76.0 µs |
82.5 µs |
89.1 µs |
247.8 µs |
8714 |
FileBasedCache |
14.9 µs |
14.8 µs to 15.1 µs |
19.6 µs |
26.8 µs |
61.0 µs |
8714 |
DatabaseCache (SQLite) |
16.5 µs |
16.4 µs to 16.6 µs |
20.9 µs |
27.3 µs |
51.0 µs |
8714 |
Store |
p50 |
p50 across runs |
p90 |
p99 |
max |
misses |
|---|---|---|---|---|---|---|
LocMemCache |
2.0 µs |
2.0 µs to 2.0 µs |
2.0 µs |
2.2 µs |
20.5 µs |
0 |
DjangoCache, diskcache-community |
24.8 µs |
24.7 µs to 24.8 µs |
31.7 µs |
48.1 µs |
713.0 µs |
0 |
DjangoCache, diskcache 5.6.3 |
24.1 µs |
24.1 µs to 24.1 µs |
31.2 µs |
46.4 µs |
1.47 ms |
0 |
PyMemcacheCache |
27.0 µs |
27.0 µs to 27.1 µs |
30.9 µs |
36.2 µs |
75.5 µs |
0 |
PyLibMCCache |
21.7 µs |
21.7 µs to 21.7 µs |
24.5 µs |
28.8 µs |
55.3 µs |
0 |
RedisCache |
79.2 µs |
78.9 µs to 80.0 µs |
86.2 µs |
94.0 µs |
277.0 µs |
0 |
FileBasedCache |
193.8 µs |
193.7 µs to 196.0 µs |
231.7 µs |
309.6 µs |
1.52 ms |
0 |
DatabaseCache (SQLite) |
223.8 µs |
222.7 µs to 227.8 µs |
248.3 µs |
308.2 µs |
2.80 ms |
0 |
Store |
p50 |
p50 across runs |
p90 |
p99 |
max |
misses |
|---|---|---|---|---|---|---|
LocMemCache |
1.5 µs |
1.5 µs to 1.6 µs |
1.6 µs |
2.0 µs |
8.3 µs |
111 |
DjangoCache, diskcache-community |
23.2 µs |
23.0 µs to 23.2 µs |
32.7 µs |
46.5 µs |
756.9 µs |
111 |
DjangoCache, diskcache 5.6.3 |
22.3 µs |
22.2 µs to 22.4 µs |
31.9 µs |
48.5 µs |
842.8 µs |
111 |
PyMemcacheCache |
25.8 µs |
25.7 µs to 25.8 µs |
29.5 µs |
34.9 µs |
45.4 µs |
111 |
PyLibMCCache |
20.7 µs |
20.7 µs to 20.8 µs |
23.6 µs |
27.5 µs |
34.9 µs |
111 |
RedisCache |
74.6 µs |
74.2 µs to 75.3 µs |
81.4 µs |
89.7 µs |
103.3 µs |
111 |
FileBasedCache |
29.7 µs |
29.2 µs to 29.8 µs |
39.3 µs |
47.9 µs |
141.4 µs |
111 |
DatabaseCache (SQLite) |
207.7 µs |
207.7 µs to 208.2 µs |
236.5 µs |
289.8 µs |
522.6 µs |
111 |
Store |
ops per second |
wall time |
on disk after the run |
|---|---|---|---|
LocMemCache |
457085 |
0.22 s |
in memory |
DjangoCache, diskcache-community |
147952 |
0.67 s |
32 MB |
DjangoCache, diskcache 5.6.3 |
150672 |
0.66 s |
32 MB |
PyMemcacheCache |
35724 |
2.77 s |
server |
PyLibMCCache |
45486 |
2.18 s |
server |
RedisCache |
12930 |
7.66 s |
server |
FileBasedCache |
30159 |
3.28 s |
5 KB |
DatabaseCache (SQLite) |
25504 |
3.88 s |
80 KB |
Running the benchmarks¶
The scripts need memcached and redis-server on the path, a venv with diskcache-community, pymemcache, pylibmc, redis, sqlitedict, lmdb and Django, and a second venv with diskcache 5.6.3 and Django for the mainline column:
python tests/benchmarks/driver.py --fork-python <venv>/bin/python \
--mainline-python <venv-563>/bin/python --out results/
python tests/benchmarks/driver.py --django --fork-python <venv>/bin/python \
--mainline-python <venv-563>/bin/python --out results/
python tests/benchmarks/report.py --results results/ --docs docs/
The driver starts and stops the servers, runs one store at a time, and the report script writes this page and its charts.
